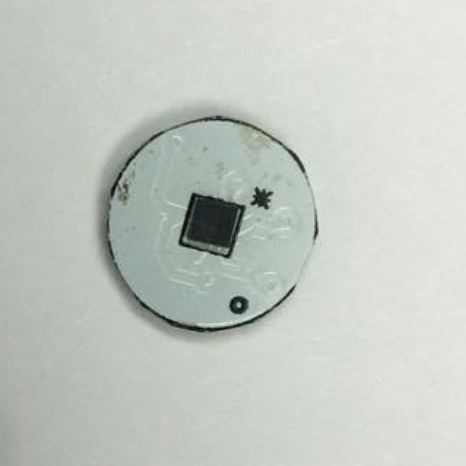

3DM

The LIS3MDL is an ultra-low-power high-performance three-axis magnetic sensor.

Key Features

• Wide supply voltage, 1.9 V to 3.6 V
• Independent IO supply (1.8 V)
• ±4/ ±8/ ±12/ ±16 gauss selectable magnetic full scale
• Continuous and single-conversion modes
• 16-bit data output
• Interrupt generator
• Self-test
• I2 C serial bus interface that supports standard and fast mode (100 kHz and 400 kHz)
• SPI serial standard interface
• Power-down mode/ low-power mode
• Extended temperature range of -40 °C to +85 °C.
