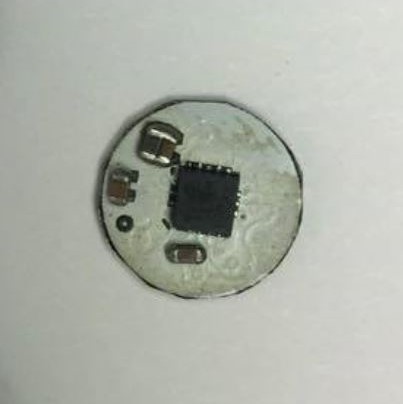

3DAM

The LSM303D is a system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor.

Key Features

• 3 magnetic field channels and 3 acceleration channels
• ±2/±4/±8/±12 gauss magnetic full scale
• ±2/±4/±6/±8/±16 g linear acceleration full scale
• 16-bit data output
• SPI serial standard interface.
• I2C serial bus interface that supports standard and fast mode (100 kHz and 400 kHz)
• Analog supply voltage 2.16 V to 3.6 V
• Power-down mode / low-power mode
• Programmable interrupt generators for free-fall, motion detection and magnetic field detection
• Embedded temperature sensor
• Embedded FIFO
• Extended temperature range from -40 °C to +85 °C.
