3DA

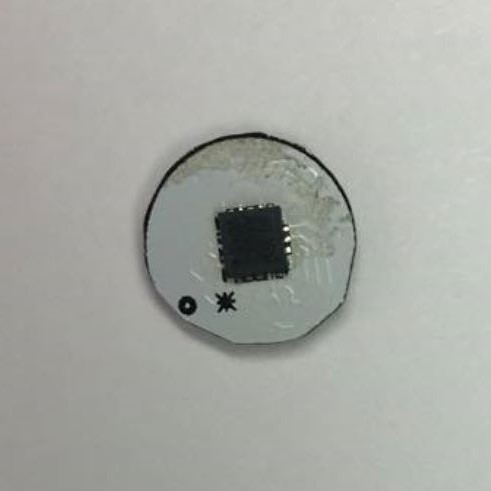

The LIS331DLH is an ultra low-power high performance three axes linear accelerometer with digital I2C/SPI serial interface standard output.

Key Features

• Embedded self-test
• 6D orientation detection
• 10000 g high shock survivability
• 2 independent programmable interrupt generators for free-fall and motion detection
• 16 bit data output
• Wide supply voltage, 2.16 V to 3.6 V
• Ultra low-power mode consumption down to 10 μA
• Low voltage compatible IOs, 1.8 V
• I2C/SPI digital output interface
• Sleep to wake-up function
• ±2g/±4g/±8g dynamically selectable full-scale
• Output data rates from 0.5 Hz to 1 kHz.
• Extended temperature range from -40 °C to +85 °C.
